SPECIFICATIONS
Notes:

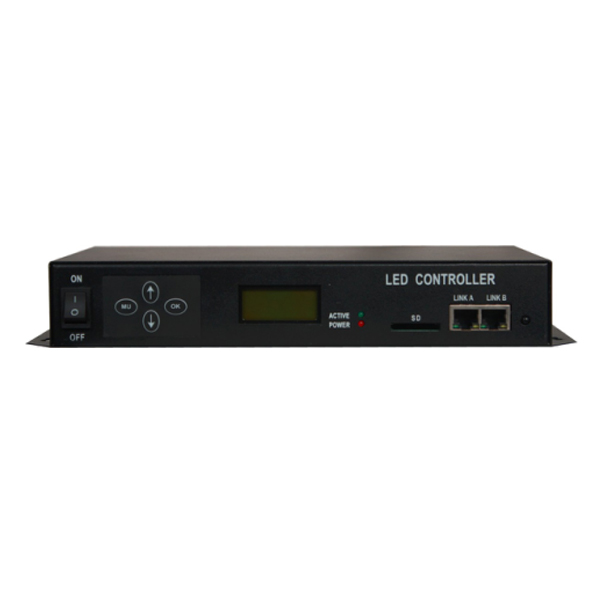

| ys-X8103 |
| Features: |
| *Support Standard USITT DMX512/1990 General Protocol &DMX Extended. |
| *SUPPORT Auto ,Pre-set & Seasoal Playback. |
| *Accurate Gramma Calculation For the Best visual effect. |
| *A max of 120 flames per second to ensure the best effect on high density & 3D video play back. |
| *With control button & remote comtrol,You can select videos & control the white balance,brightness & fast forward…etc. |
| *With 32bit gray scale. |
| *Support R.G.B.W.fixtre ,enhance mode. |
| *8's DMX Channels Output.Number of Channels for DMX extended. Can be defined per different DMX decoder IC. |
| *Support max of 32G SD Car & 99'S Video Programs. |
| *Support Remote upload & operation 8th off-line progoam. |
| *Built-in testing progoam for testing mode. |
| Parameter: | |
| Input Voltage | AC 100V～240V |
| Input Power | 15W |

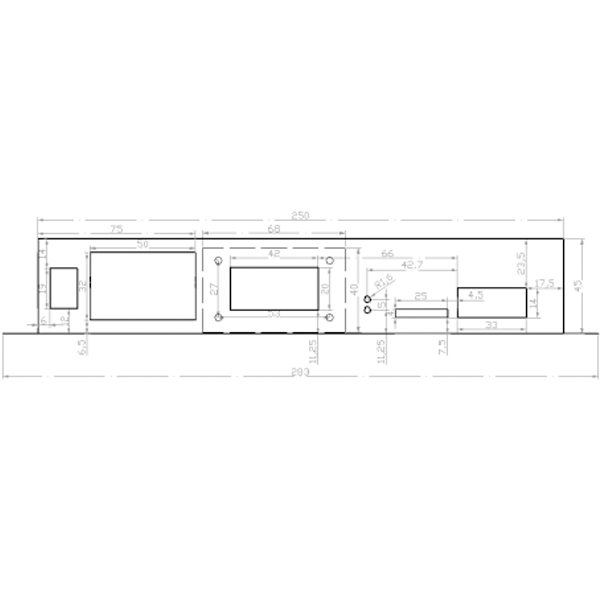

| (L) | 283mm |
| (W) | 134mm |
| (H) | 45mm |
| Faing hole spccy | 268mm；68 mm |
| Standard Parts | Remote Contrel*1 ,SD Card*1,Card Reader*1, AC Power able*1 |
