SPECIFICATIONS
Notes:

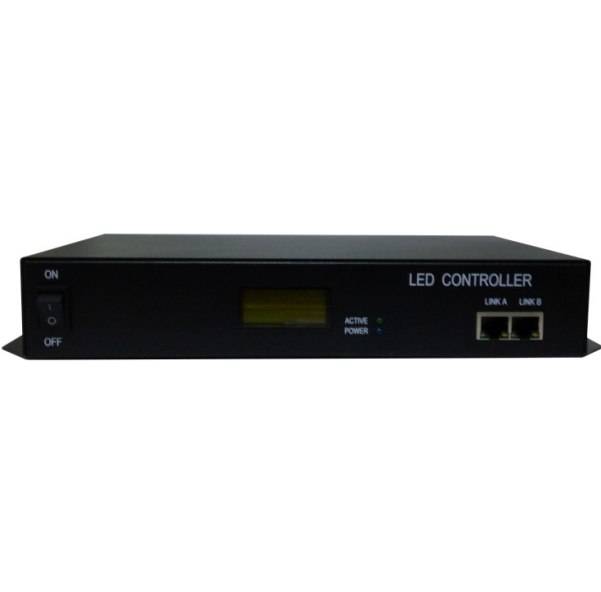

| Type | YS-X8120 |
| Product brief: | |
| 1.32bits gery Scale . | |
| 2. Individual R.G.B brightness control,for more precise white balance. | |
| 3. Precised Gramma Correction calcalation to best suit for humen's visual sense. | |
| 4.Support max. of 120s flames per second. | |
| 5.Uses Ethernet port with UDP board cast. The max. cable length is up to 150 meters. | |
| 6.LCD Display to show the status & figures. | |
| 7.Support both TTL & RS-485 Output. | |
| 8.Multi decoding can be supported to suit for different decoding ICs. | |
| 9.Dual Efhernet port to support Inter-connect between devices. | |
| 10.Support Backup mode which one device failure another can be used as backup at the same time. | |
| 12.100/1000M Support Ethernet. | |
| Input voltage | AC 100V～240V |
| Power Rating | 15W |
| L | 283mm |
| W | 134mm |
| H | 45mm |
| Installation holes spacing | 268mm；68 mm |
| Accessory | AC Power Core×1 |
